| Moq: | 交渉可能 |
| 価格: | negotiable |
| 標準パッケージ: | ストリップが付いているプラスチック フィルムそして覆いによって詰められる |
| 配達期間: | 顧客の要求に従って |
| 決済方法: | 交渉可能 |
| 供給能力: | 強い生産能力 |
robot vision capabilities
Kinte embeds robot vision systems in automation applications to continuously improve industrial intelligence, and has successively applied in robot 2D vision, 3D vision, laser positioning guidance vision and laser vision gluing in the automotive industry. For example, roof grabbing, front floor/rear floor grabbing, stringer grabbing, roof gluing laser real-time inspection, etc.
Robot 2D Vision
Pic1
Robot 3D Vision
Pic2
Robotic 3D Laser Vision
Pic3
Robotic 3D Laser Vision
Pic4

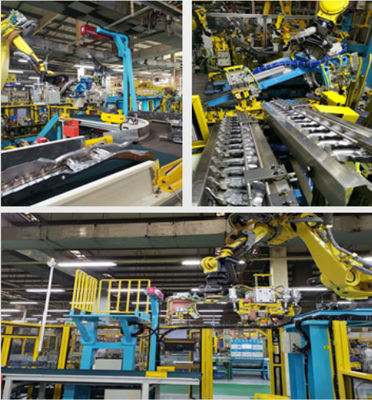

Robot vision case
Case 1
Models: 4 models collinear (up to 8 models)
Tempo: 70JPH
Part type: left and right longitudinal beams
ROBOT: FANUC
PLC: Mitsubishi
Vision type: 3D laser vision
Scan matching speed: 7 seconds
External light source: not required
Technical Features:
1. 5 people designing the whole line
2. 3D laser visual recognition and capture of workpiece at any angle and any position
3. The visual gripper robot automatically grabs the upper part on the conveyor belt
4. The vision system uses intelligent high-speed algorithms to quickly identify and match and improve the beat;
5. Parts are conveyed by automatic palletizing
6. Solder joint inspection is automatically detected by visual camera
Case 2
Model: three models
Tempo: 30JPH
Part type: underbody combination
ROBOT : FANUC
PLC: Mitsubishi
Vision system brand: Cognex
Vision type: 2D vision
Photo matching speed: 15 seconds
External light source: required
Technical Features:
1. Use high-precision material rack + visual guidance system to guide the grasping parts;
2. The camera is installed on the robot to move the measurement scheme;
Case 3
Models: 4 models collinear
Beat: 30JPH for the first phase, 40JPH for the second phase
Part Type: Cabin Stringer
ROBOT : ABB
PLC : Siemens
Vision System Brand: ISRA
Vision type: 3D vision
Photo matching speed: 5 seconds
External light source: required
Technical Features:
1. Use high-precision material rack + visual guidance system to guide the grasping parts;
2. The mobile measurement scheme where the camera is installed on the robot.
|
|
